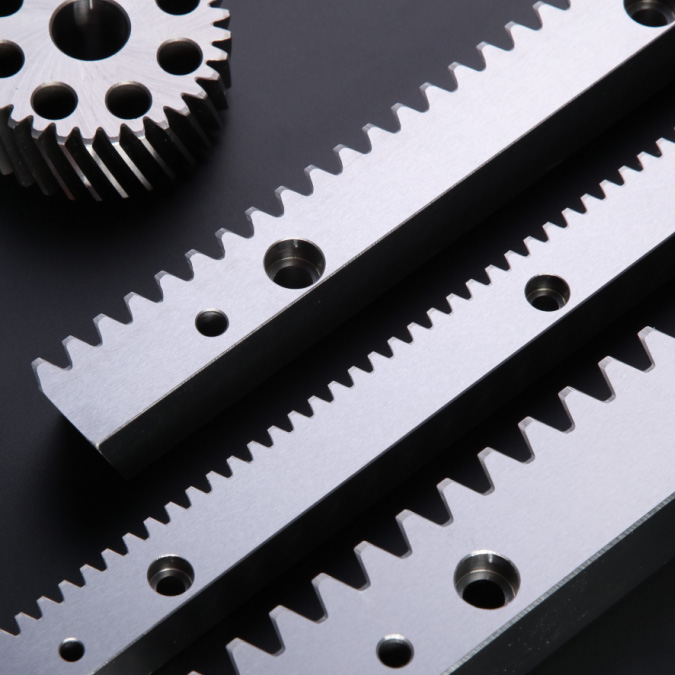

STRRONSE精銑齒條采用精密銑削工藝，齒條采用精銑調質處理，可加工模數2-5模，根據數量可定制，精銑齒條加工長度達到1米長，可進行拼接，不影響整體運行精度，齒條精度可做到DIN標準8級，精銑齒條可適用直線運動和軸向力較大的應用。
行業應用廣泛，在自動化行業、機器人、機床等設備使用
精銑齒條精度相對研磨齒條稍低，性價比高，適合運用于對精度要求不太高的設備，運行時噪音低、運行平穩、壽命長。
STRRONSE可提供穩定月產超過2萬條的各種類型齒條。 齒條精度涵蓋DIN6S-DIN10級，模數包括1.5-10，擁有銑削、磨削、淬火等各種工藝的直齒和斜齒，結合多種樣式的齒輪及減速機搭配組合，可提供適用各領域及工況的針對性應用方案。
| 訂貨號 | 模數 | 理論長 | L2 | z | b | ha | h | f?0.6 | a | l | h1 | d1 | d2 | t | a1 | l1 | d3 | kg |
| 1902.305 | 2 | 500 | 8.5 | 75 | 24 | 24 | 22 | 2 | 62.5 | 125 | 8 | 7 | 11 | 7 | 31.7 | 436.6 | 5.7 | 2.1 |
| 1902.301 | 2 | 1000 | 8.5 | 150 | 24 | 24 | 22 | 2 | 62.5 | 125 | 8 | 7 | 11 | 7 | 317 | 936.6 | 5.7 | 4.1 |
| 1903.305 | 3 | 500 | 10.3 | 50 | 29 | 29 | 26 | 2 | 62.5 | 125 | 9 | 10 | 15 | 9 | 35.0 | 430.0 | 7.7 | 2.9 |
| 1903.301 | 3 | 1000 | 10.3 | 100 | 29 | 29 | 26 | 2 | 62.5 | 125 | 9 | 10 | 15 | 9 | 35.0 | 930.0 | 7.7 | 5.9 |
| 1904.305 | 4 | 506.66 | 13.8 | 38 | 39 | 39 | 35 | 3 | 62.5 | 125 | 12 | 10 | 15 | 9 | 33.3 | 433.0 | 7.7 | 5.4 |
| 1904.301 | 4 | 1000 | 13.8 | 75 | 39 | 39 | 35 | 3 | 62.5 | 125 | 12 | 10 | 15 | 9 | 33.3 | 933.4 | 7.7 | 10.7 |
| 1905.305 | 5 | 500 | 17.4 | 30 | 49 | 39 | 34 | 3 | 62.5 | 125 | 12 | 14 | 20 | 13 | 37.5 | 425.0 | 11.7 | 6.5 |
| 1905.301 | 5 | 1000 | 17.4 | 60 | 49 | 39 | 34 | 3 | 62.5 | 125 | 12 | 14 | 20 | 13 | 37.5 | 925.0 | 11.7 | 13.0 |
| 1906.405 | 6 | 500 | 20.9 | 25 | 59 | 49 | 43 | 3 | 62.5 | 125 | 16 | 18 | 26 | 17 | 37.5 | 425.0 | 15.7 | 9.9 |
| 1906.401 | 6 | 1000 | 20.9 | 50 | 59 | 49 | 43 | 3 | 62.5 | 125 | 16 | 18 | 26 | 17 | 37.5 | 925.0 | 15.7 | 19.8 |
/鋼號 1.0503 (C45) /齒形角 20°
/工藝 高頻淬火50-55 HRC/ 調質處理 24-27 HRC /精度 8/9
| 訂貨號 | 模數 | 理論長 | z | b | ha | h | f +0.5 | a |
l |
h1 | d1 | d2 | t | a1 | l1 | d3 | kg |
| 2002.405 | 2 | 502,65 | 80 | 24 | 24 | 22 | 2 | 62.8 | 125.66 | 8 | 7 | 11 | 7 | 31.3 | 440.1 | 5.7 | 2.1 |
| 2002.401 | 2 | 1005,30 | 160 | 24 | 24 | 22 | 2 | 62.8 | 125.66 | 8 | 7 | 11 | 7 | 313 | 942.7 | 5.7 | 4.2 |
| 2003.405 | 3 | 508,93 | 54 | 29 | 29 | 26 | 2 | 63.6 | 127.23 | 9 | 10 | 15 | 9 | 34.4 | 440.1 | 7.7 | 3 |
| 2003.401 | 3 | 1017,87 | 108 | 29 | 29 | 26 | 2 | 63.6 | 127.23 | 9 | 10 | 15 | 9 | 34.4 | 949.1 | 7.7 | 6 |
| 2004.405 | 4 | 502,65 | 40 | 39 | 39 | 35 | 3 | 62.8 | 125.66 | 12 | 10 | 15 | 9 | 37.5 | 427.7 | 7.7 | 5.25 |
| 2004.401 | 4 | 1005,30 | 80 | 39 | 39 | 35 | 3 | 62.8 | 125.66 | 12 | 10 | 15 | 9 | 37.5 | 930.3 | 7.7 | 10.5 |
| 2005.405 | 5 | 502,65 | 32 | 49 | 39 | 34 | 3 | 62.8 | 125.66 | 12 | 14 | 20 | 13 | 30.2 | 442.3 | 11.7 | 6.7 |
| 2005.401 | 5 | 1005,3 | 64 | 49 | 39 | 34 | 3 | 62.8 | 125.66 | 12 | 14 | 20 | 13 | 30.2 | 945 | 11.7 | 13.4 |
| 2006.405 | 6 | 508,93 | 27 | 59 | 49 | 43 | 3 | 63.6 | 127.23 | 16 | 18 | 26 | 17 | 31.4 | 446.1 | 15.7 | 10.4 |
| 2006.401 | 6 | 1017,87 | 54 | 59 | 49 | 43 | 3 | 63.6 | 127.23 | 16 | 18 | 26 | 17 | 31.4 | 955 | 15.7 | 20.2 |
