磨削齒條產品介紹
磨削齒條加工采用淬火后磨削齒面處理方式，具有低傳動噪音、高傳動技術效率和長使用壽命的優點。齒輪磨齒加工生產過程中我們所用的材料比較常見的是鋼，而鋼有調質鋼、淬火鋼、滲碳表面淬火鋼和滲氮鋼等類型。磨齒是一種有效的齒形光整加工方法，通常用于加工硬齒面。具有很強的修正磨削前誤差的能力，可以達到很高的精度。
應用領域
應用于自動化機器人、龍門加工中心、激光切割機、鋁型材、木工加工中心、桁架第七軸等領域。此類齒條一般要求精度高、定位準確、運行穩定。
| 訂貨號 | 模數 | 理論長 | L2 | z | b | ha | h | f+0.5 | a | l | h1 | d1 | d2 | t | a1 | l1 | d3 | kg |
| 1902.205 | 2 | 500 | 8.5 |
75 |
24 | 24 | 22 | 2 | 62.5 | 125 | 8 | 7 |
11 |
7 | 31.7 | 436.6 | 5.7 | 2.1 |
| 1902.201 | 2 | 1000 | 8.5 | 150 | 24 | 24 | 22 | 2 | 62.5 | 125 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | 4.1 |
| 1903.205 | 3 | 500 | 10.3 | 50 | 29 | 29 | 26 | 2 | 62.5 | 125 | 9 | 10 | 15 | 9 | 35 | 430 | 7.7 | 2.9 |
| 1903.201 | 3 | 1000 | 10.3 | 100 | 29 | 29 | 26 | 2 | 62.5 | 125 | 9 | 10 | 15 | 9 | 35 | 930 | 7.7 | 5.9 |
| 1904.205 | 4 | 506.66 |
13.8 |
38 | 39 | 39 | 35 | 3 | 62.5 | 125 | 12 | 10 | 15 | 9 | 33.3 | 433 | 7.7 | 5.4 |
| 1904.201 | 4 | 1000 | 13.8 | 75 | 39 | 39 | 35 | 3 | 62.5 |
125 |
12 | 10 | 15 | 9 | 33.3 | 933.4 | 7.7 | 10.7 |
| 1905.205 | 5 | 500 | 17.4 | 30 | 49 | 39 | 34 | 3 | 62.5 | 125 | 12 | 14 | 20 | 13 | 37.5 | 425 | 11.7 | 6.5 |
| 1905.201 | 5 | 1000 | 17.4 | 60 | 49 | 39 | 34 | 3 | 62.5 | 125 | 12 | 14 | 20 | 13 | 37.5 | 925 | 11.7 | 13 |
| 1906.205 | 6 | 500 | 20.9 | 25 | 59 | 49 | 43 | 3 | 62.5 | 125 | 16 | 18 | 26 | 17 | 37.5 | 425 | 15.7 | 9.9 |
| 1906.201 | 6 | 1000 | 20.9 | 50 | 59 | 49 | 43 | 3 | 62.5 | 125 | 16 | 18 | 26 | 17 | 37.5 | 925 | 15.7 | 19.8 |
| 1908.205 | 8 | 480 | 28 | 18 | 79 | 79 | 71 | 3 | 60 | 120 | 25 | 22 | 33 | 21 | 120 | 240 | 19.7 | 21 |
| 1908.201 | 8 | 960 | 28 | 36 | 79 | 79 | 71 | 3 | 60 | 120 | 25 | 22 | 33 | 21 | 120 | 720 | 19.7 | 42.5 |

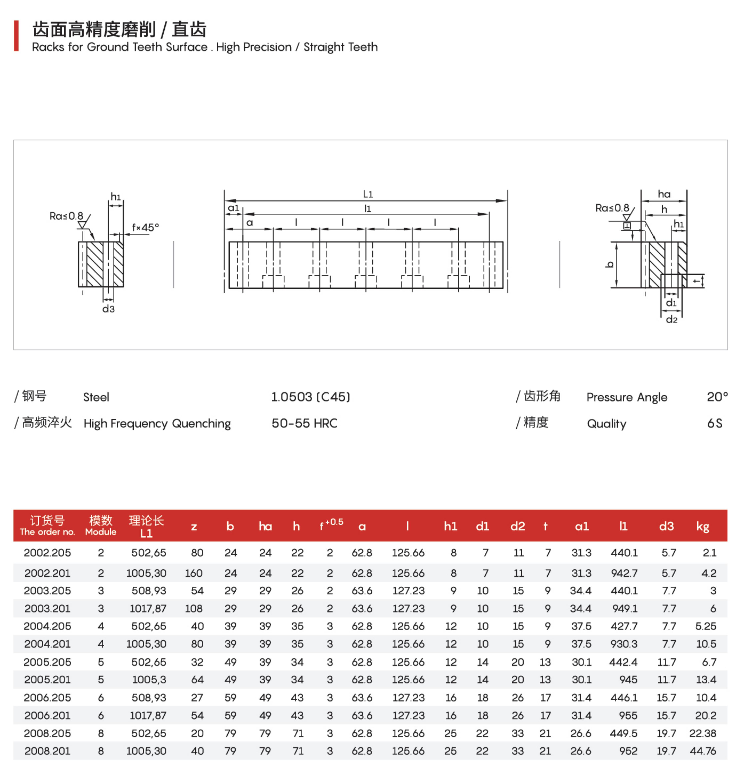

| 訂貨號 | 模數 | 理論長 | z | b | ha |
h |
f+0.5 | a | l | h1 | d1 | d2 | t | a1 | l1 | d3 | kg |
| 2002.205 | 2 | 502.65 | 80 | 24 | 24 | 22 | 2 | 62.8 | 125.66 | 8 | 7 | 11 | 7 | 31.3 | 440.1 | 5.7 | 2.1 |
| 2002.201 | 2 | 1005.3 | 160 | 24 | 24 | 22 | 2 | 62.8 | 125.66 | 8 | 7 | 11 | 7 | 31.3 | 942.7 | 5.7 | 4.2 |
|
2003 .205 |
3 | 508.93 | 54 | 29 | 29 | 26 | 2 | 63.6 | 127.23 | 9 | 10 | 15 | 9 | 34.4 | 440.1 | 7.7 | 3 |
| 2003.201 | 3 | 1017.87 | 108 | 29 | 29 | 26 | 2 | 63.6 | 127.23 | 9 | 10 | 15 | 9 | 34.4 | 949.1 | 7.7 | 6 |
| 2004.205 | 4 | 502.65 | 40 | 39 | 39 | 35 | 3 | 62.8 | 125.66 | 12 | 10 | 15 | 9 | 37.5 | 427.7 | 7.7 | 5.25 |
| 2004.201 | 4 | 1005.3 | 80 | 39 | 39 | 35 | 3 | 62.8 | 125.66 | 12 | 10 | 15 | 9 | 37.5 | 930.3 | 7.7 | 10.5 |
| 2005.205 | 5 | 502.65 | 32 | 49 | 39 | 34 | 3 | 62.8 | 125.66 | 12 | 14 | 20 | 13 | 30.1 | 442.4 | 11.7 | 6.7 |
| 2005.201 | 5 | 1005.3 | 64 | 49 | 39 | 34 | 3 | 62.8 | 125.66 | 12 | 14 | 20 | 13 | 30.1 | 945 | 11.7 | 13.4 |
| 2006.205 | 6 | 508.93 | 27 | 59 | 49 | 43 | 3 | 63.6 | 127.23 | 16 | 18 | 26 | 17 | 31.4 | 446.1 | 15.7 | 10.4 |
| 2006.201 | 6 | 1017.87 | 54 | 59 | 49 | 43 | 3 | 63.6 | 127.23 | 16 | 18 | 26 | 17 | 31.4 | 955 | 15.7 | 20.2 |
| 2008.205 | 8 | 502.65 | 20 | 79 | 79 | 71 | 3 | 62.8 | 125.66 | 25 | 22 | 33 | 21 | 26.6 | 449.5 | 19.7 | 22.38 |
| 2008.201 | 8 | 1005.3 | 40 | 79 | 79 | 71 | 3 | 62.8 | 125.66 | 25 | 22 | 33 | 21 | 26.6 | 952 | 19.7 | 44.76 |
